Oil Filter Relocation Kit | Mr. Gasket | 7680 | 4-6-8 Cylinder Engines

$93.44 $121.34
SKU: 7680

Holley’s Mr. Gasket Remote Oil Filter Adapter Kit Part Number 7680



Fits G.M. Corporate Chevrolet Engine Applications. Chevrolet, Buick, Cadillac, Oldsmobile, Pontiac.V8 and in-line 6 engines using 13/16-16 threads at the block.

This complete oil filter adapter kit 7680 is easy to install and makes changing oil filters easier and a cleaner procedure for all GM cars and trucks.

Install the oil filter in a more convenient location like when your car is equipped with custom headers.

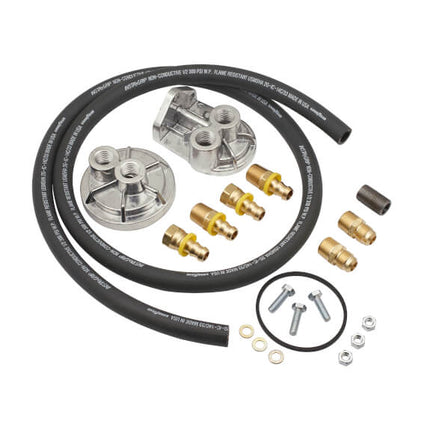

Make your oil changes quicker and easier. Mr. Gasket Oil Filter Relocation Kit 7680 allows you to put the oil filter in a more convenient location. Single filter design. The 7680 kit engine oil filter adapter is made of polished cast aluminum. All mounting hardware and hose included. All Mr. Gasket Remote oil filter systems are designed to use either the Wix 51515 (Long) or 51068 (Short) or the Fram HP1 or PH8A (Long) or PH43 (Short) oil filter, or equivalent.



FEATURES OF THE MR. GASKET OIL FILTER RELOCATION KIT 7680

  • Made of Cast Aluminum
  • Uses Wix 51515 (Long) or 51068 (Short), Fram HP1 or PH8A (Long) or PH43 (Short) oil filter, or equivalent.
  • Block adapter uses 13/16" - 16 threads
  • Includes Earl’s Oil Line
  • Block adapter 13/16" - 16 threads

SPECS OIL FILTER RELOCATION KIT 7680

Brand



Mr. Gasket/Holley

Emission Code



5

Finish



Natural

Material



Aluminum

Product Type



Oil Filter Relocation Kit

Warranty



Limited 90 Day Warranty

Weight



3.2500

UPC



084041076804

Part Number



7680

OIL FILTER RELOCATION KITS 7680 BY MR. GASKET FIT:

 BUICK

68-75 L6 250, 77-95 V8 305-350



CADILLAC

90-93 V8 305-350



CHEVROLET-CARS/VANS/TRUCKS

62-95 4 140-153

62-87 l6 194-292

68-95 V8 262-254

56-68 V8 265-427

62-67 V8 283-327



OLDSMOBILE

66-76 L6 250

77-92 V8 305-350



PONTIAC

64-76 L6, 230-250

78-95 V8 305-350



EMISSIONS

Kit 7680 is legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because it does not affect vehicle emissions and is not covered by emissions regulations. The kit 7682 is designed for all cars and trucks for motorsports and performance vehicles.

NOTICE

Check the hoses to be sure they are connected correctly. The hose you connected to the "in" port on the engine bypass adapter must also be connected to the port marked "in" on the oil filter mounting bracket and the "out" port on the engine bypass adapter must be installed on the "out" port on the oil filter mounting bracket. Hoses connected to by-pass adapter ports marked “in” and “out” must correspond to the same “in” and “out” ports on the remote oil filter mounting bracket for proper oil circulation.



 FITMENT CHART


install remote filter 7680 7682

Make sure “in” on the remote mount connects to “in” on the engine adapter and the “out” connects to the “out” on the engine adapter. The items on the drawings may differ from the actual kit.

Keep hoses as short as possible when routing. The hoses must not kink, crimp, and avoid contact with the hot exhaust or sharp surfaces, otherwise, damage to the hose or engine will result. To avoid oil flow restrictions maintain a minimum radius of 3-1/2".


Installation Instructions for Mr. Gasket Oil Filter Relocation Kit 7680
