Holley’s Mr. Gasket Remote Oil Filter Adapter Kits, Part Numbers 7680 & 7682

 By Jean Genibrel 04-22-2023

Install the oil filter in a more convenient location like when your car is equipped with custom headers or a swap.

No more need for jacking up the car!

Install an oil cooler with just two more fittings and a short length of hose.

Kit 7680 Fits G.M. Corporate Chevrolet Engine Applications. Chevrolet, Buick, Cadillac, Oldsmobile, Pontiac.V8 and in-line 6 engines using 13/16-16 threads at the block.

 Kit 7682 Fits Fords, Chryslers, Dodges, Volvos, VWs, Toyotas, Jeeps, Plymouths.

FITMENT CHART

These complete oil filter adapter kits 7680 & 7682 are easy to install and make changing oil filters easier and a cleaner procedure for all GM cars and trucks, and  Fords, Chryslers, Dodges, Volvos, VWs, Toyotas, Jeeps, Plymouths.

Buy fully machined anodized aluminum oil filter relocation kits from APPLIEDSPEED.com. These kits contain far more reliable "O" ring fittings, six feet of 250 degree high pressure hose, and the filter pedestals contain two inlets and two outlets on opposite side.

Install the oil filter in a more convenient location like when your car is equipped with custom headers.

No more need for jacking up the car!

Install an oil cooler with just two more fittings and a short length of hose.

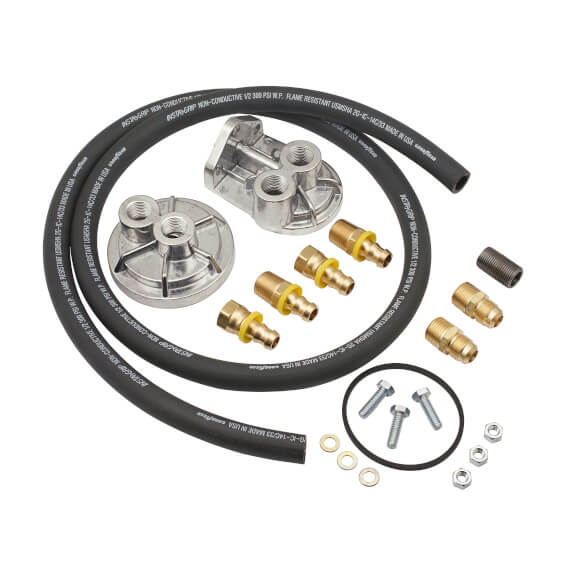

Make your oil changes quicker and easier. Mr. Gasket Oil Filter Relocation Kits 7680 and 7682 allow you to put the oil filter in a more convenient location. Single filter design. The 7680 and 7682 kits engine oil filter adapters are made of polished cast aluminum. All mounting hardware and hose included. All Mr. Gasket Remote oil filter systems are designed to use either the Wix 51515 (Long) or 51068 (Short) or the Fram HP1 or PH8A (Long) or PH43 (Short) oil filter, or equivalent.

FEATURES OF THE MR. GASKET OIL FILTER RELOCATION KITS 7680 &7682

• Made of Cast Aluminum
• Uses Wix 51515 (Long) or 51068 (Short), Fram HP1 or PH8A (Long) or PH43 (Short) oil filter, or equivalent.
• Block adapter uses 13/16" - 16 threads
• Includes Earl’s Oil Line
• Block adapter 13/16" - 16 threads

SPECS OIL FILTER RELOCATION KIT 7680 & 7682

EMISSIONS

Kits 7680 and 7682 are legal for sale or use on Emissions Controlled Vehicles, Uncontrolled (Non-Emissions Controlled) Vehicles, and Racing Use Only Vehicles because they do not affect vehicle emissions and are  not covered by emissions regulations. The kits7680 and 7682 are designed for most cars and trucks for motorsports and performance vehicles.

NOTICE

Check the hoses to be sure they are connected correctly. The hose you connected to the "in" port on the engine bypass adapter must also be connected to the port marked "out" on the oil filter mounting bracket and the "out" port on the engine bypass adapter must be installed on the "in" port on the oil filter mounting bracket. Hoses connected to by-pass adapter ports marked “in” and “out” must correspond to the same “in” and “out” ports on the remote oil filter mounting bracket for proper oil circulation.

Make sure “in” on the remote mount connects to “out” on the engine adapter and the “out” connects to the “in” on the engine adapter. The items on the drawings may differ from the actual kit.

Keep hoses as short as possible when routing. The hoses must not kink, crimp, and avoid contact with the hot exhaust or sharp surfaces, otherwise, damage to the hose or engine will result. To avoid oil flow restrictions maintain a minimum radius of 3-1/2".
